CB302BJetson Orin Nano & Orin NX Carrier Board
CB302B is a production-capable carrier board for NVIDIA Jetson Orin Nano (4GB, 8GB) and Orin NX (8GB, 16GB). It runs native Linux for Tegra (L4T) with JetPack and native LineageOS 24 / Android 17 (beta).
Engineered for untethered operation, DisplayPort over USB-C, and sustained Orin Super Mode performance - suitable for real-world deployment as well as development.
Reservations join the waitlist. No payment is taken; $229 USD is an indicative board price.
Populated assembly shown. Jetson module and NVMe storage are configured separately.
Board Features
CB302B is a professional-grade carrier board with extensive connectivity and power capabilities, designed for embedded AI, robotics, wearable compute, and field-deployed systems.
Technical Specifications
Processor Support
- • NVIDIA Jetson Orin Nano 4GB
- • NVIDIA Jetson Orin Nano 8GB
- • NVIDIA Jetson Orin NX 8GB
- • NVIDIA Jetson Orin NX 16GB
- • Supports sustained Orin Super Mode
Form Factor & Mechanical
- • Shared CB302 platform design - B stuffing for Orin
- • Compatible with 3D-printed mechanical frames
- • Designed for integration into custom enclosures
- • Recyclable carton packaging with logo
- • Includes quick-start card with QR code to online documentation
USB & Display
- • TypeC1: DP ALT mode, USB3 GEN2, USB2.0, 5V power output
- • TypeC2: TypeC PD max 45W (15V/3A), USB debug port with flash support
Network
- • RJ45 Gigabit Ethernet (1Gbps)
- • WiFi/BT via M.2 Key E Module
- • RTL8822CE included with antenna
Camera & Audio
- • Dual 22-pin FPC camera connectors
- • Same as Orin Nano super devkit
- • Left and right stereo speakers
- • Microphone (TBD)
Power Input
- • TypeC PD: Max 45W (15V/3A)
- • Milwaukee M12 battery support (3AH~9AH)
- • Power connector adapter included
- • Supports power-on with battery
Thermal Management
- • 4-pin 5V fan connector
- • PWM speed control
- • Active cooling for sustained performance
Battery runtime depends on the module, power mode, workload, peripherals and pack.Talk to engineering about your power requirements.
GPIO & Headers
- • 40-pin header: UART/I2C/SPI/GPIO
- • Same as Orin Nano super devkit pinout
- • Button header: force recovery, reset, UART debug
Storage
- • M.2 Key M NVMe SSD support
- • 2280/2260/2242 form factors
- • Left open to user
Additional I/O
- • CAN: 4-pin 2.54mm pitch header (reserved)
- • RTC: 2-pin 1.25mm pitch header (reserved)
Housing & Structure
- • 3D print frame for mechanical structure
- • Compatible with modular accessories
Packaging
- • Recyclable carton packaging
- • Curve Reality® logo branding
- • One-sheet card with product information
- • QR code for online materials access

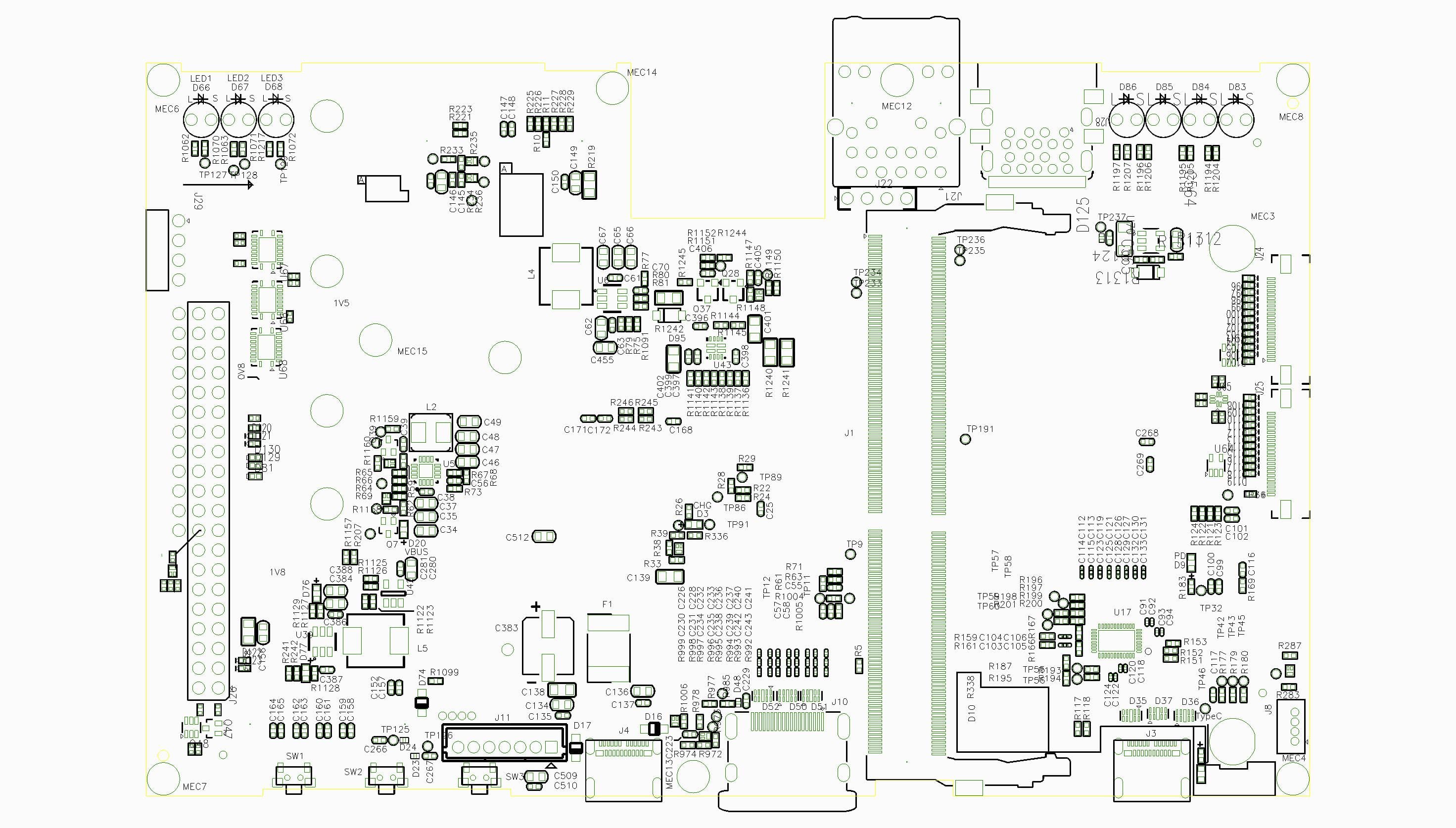

PCB Top View
PCB Bottom View
Ready to Build with CB302B?
CB302B is designed for developers and teams who need battery-powered Jetson compute, display flexibility, and deployment-ready hardware - not just a bench-top evaluation board.
Register your interest in a CB302B carrier board or configure a complete system. Reservations join the waitlist; no payment is taken.
